Specifications

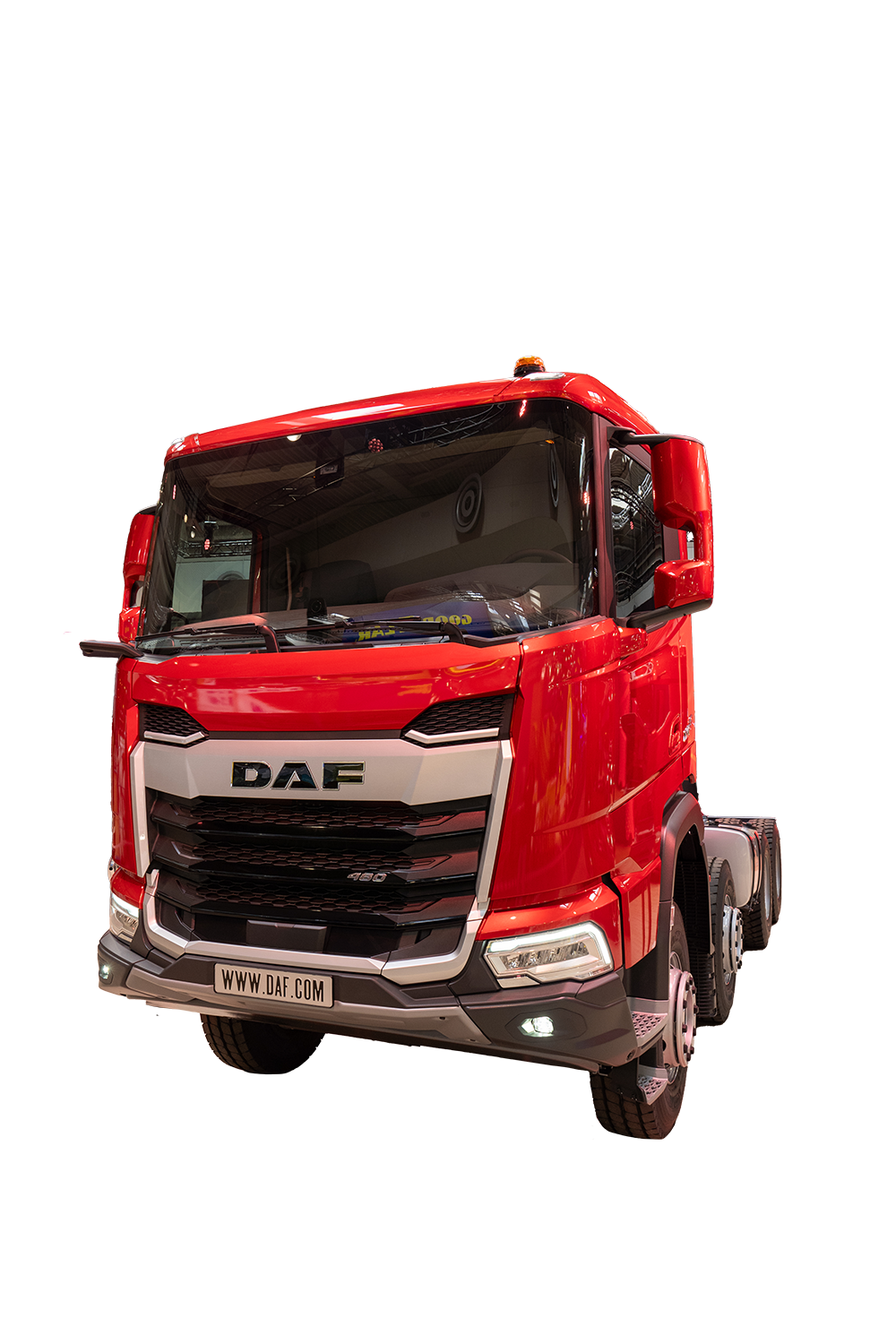

XFc 480 FAD
| Axle configuration | 8x4 | |||||||||||||
| Wheelbase | 5.300 | |||||||||||||
| Engine type | PACCAR MX-13 | |||||||||||||
| Number of cylinders | 6 | |||||||||||||
| Piston displacement | 12.9 | |||||||||||||
| Engine output | 355 kW (480 hp) at 1.675 rpm | |||||||||||||
| Maximum torque "high gear" | 2.500 Nm at 900 - 1.125 rpm | |||||||||||||
| Maximum torque | 2.350 Nm at 900 - 1.400 rpm | |||||||||||||
| Gearbox | Traxon 12-speed | |||||||||||||
| Front axle type (max. load) | 167N (8.000 kg) | |||||||||||||
| Front 2nd axle type (max. load) | 167N (8.000 kg) | |||||||||||||
| Rear axle type (max. load) | HR 1670T (2x 10.500 kg) | |||||||||||||
| Tyre size front axle |
315/80 R22,5
|
|||||||||||||
| Tyre size 2nd front axle |
315/80 R22,5
|
|||||||||||||
| Tyre size rear axle |
2x 315/80 R22,5
|
|||||||||||||
| Suspension front/rear axle | Parabolic/Trapezium | |||||||||||||
| Cab suspension | Mechanical | |||||||||||||
| Fuel tank capacity | 340 Liters | |||||||||||||
| AdBlue tank capacity | 45 Liters | |||||||||||||
| Technical max GVM | 35.000 kg | |||||||||||||
| Technical max GCM | 58.000 kg | |||||||||||||
| Several options |
|
